KNA SP-1 Soundhole Single Coil Pickup

RRP $199.00
$179.00
SAVE $20.00
In Stock

or 4 payments of $44.75 with Info



Singe-coil, soundhole-mounted design for steel-string acoustic guitar​

Employing the fast and articulate attack of ferrite magnets, the SP-1 amplifies the sound of your acoustic with a dynamic blend of clarity and balance.

Its high-quality mahogany casing and lightweight design ensure maximum sensitivity and durability.

Features:

Installs with no modification

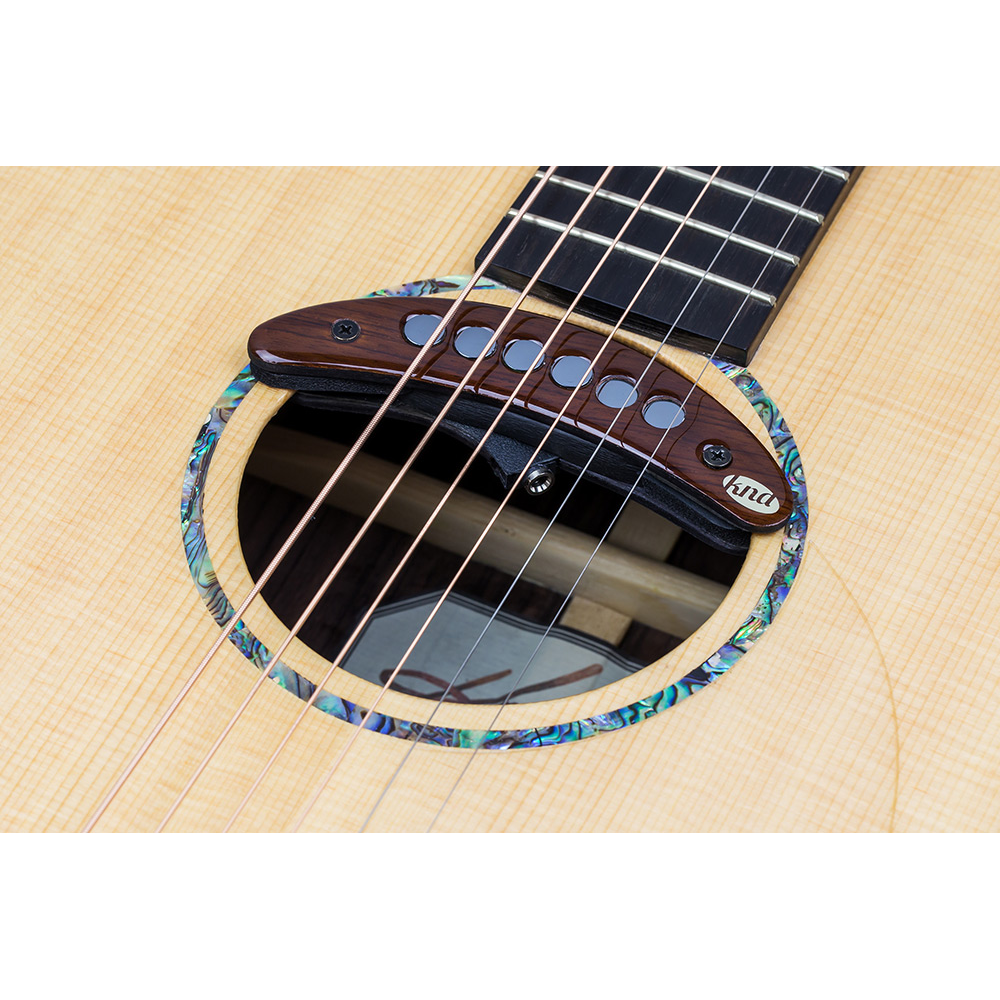

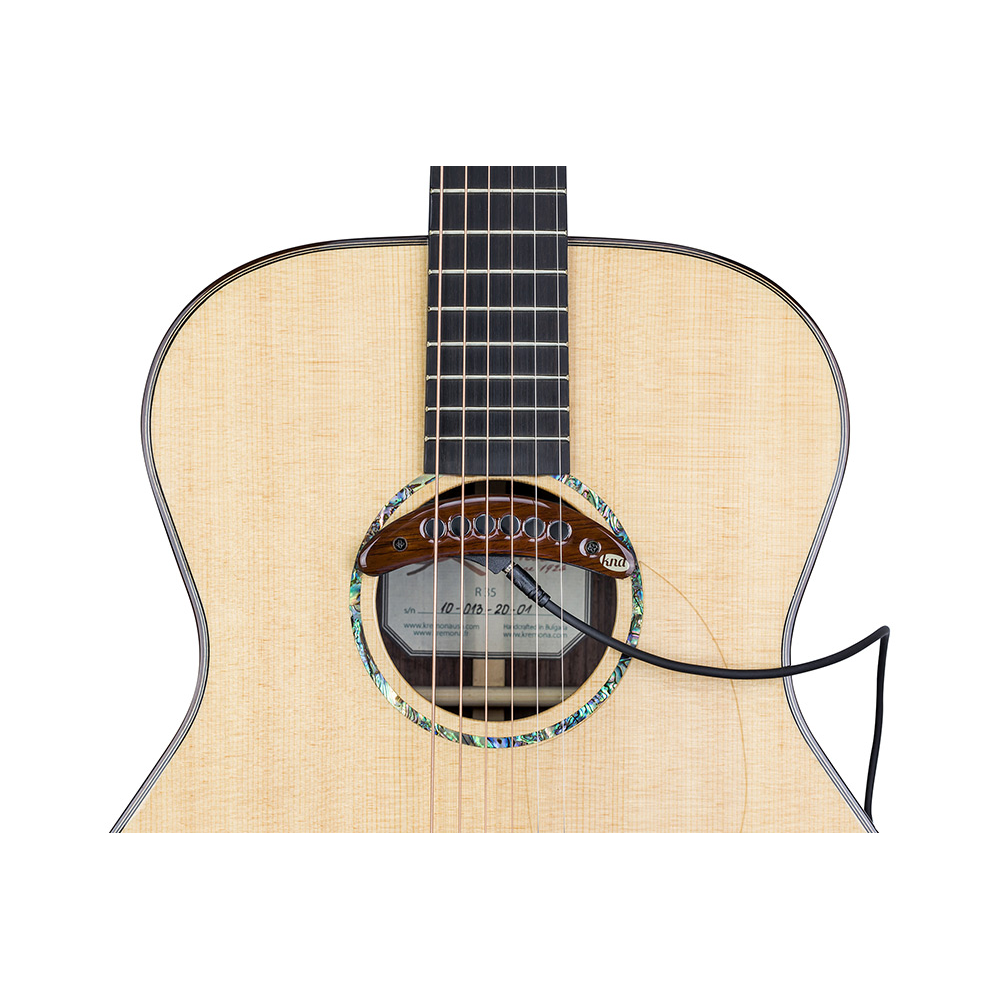

Simply drop this pickup into the soundhole of the guitar and gently tighten the mounting screws until it is firmly mounted to the top.

Wood case

The magnets are encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Ferrite magnets

Employing the fast and articulate attack of ferrite magnets, the SP-1 amplifies the sound of your acoustic with a dynamic blend of clarity and balance.

Natural sound

SP-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

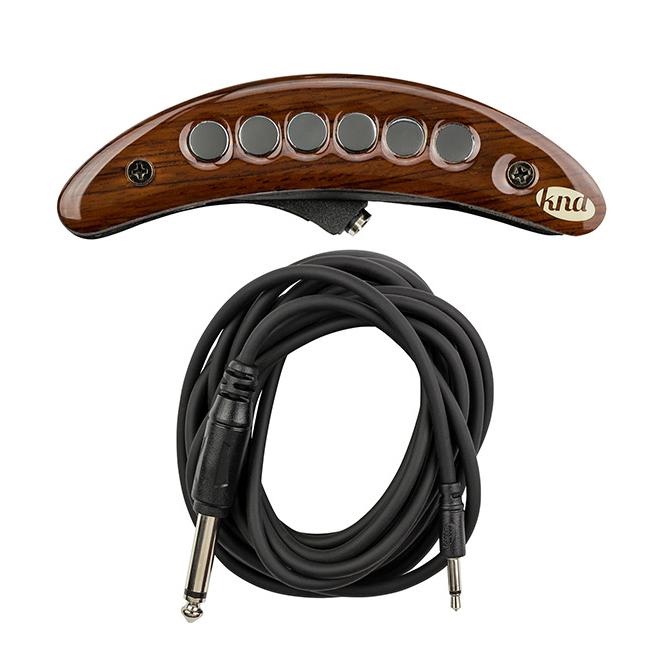

Cable included

A 1/8" to 1/4" cable is included for easy connection to an amplifier or mixer.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

 SPECIFICATIONS
Weight 45.35g. / 1.6oz
Lower side length 107mm / 4.21"
Upper side length 113mm / 4.45"
Height 15mm / 0.59"
Distance between first and last pole piece 58mm / 2.28"
Miminum soundhole's diameter to fit 92mm / 3.62"
Wood Mahogany
Impedance 3.60k Ω
Cable

3meter / 9'

(KNASP1)

SKU KNASP1
Brand KNA Pickups
Shipping Weight 0.1650kg
Shipping Width 0.048m
Shipping Height 0.130m
Shipping Length 0.089m
