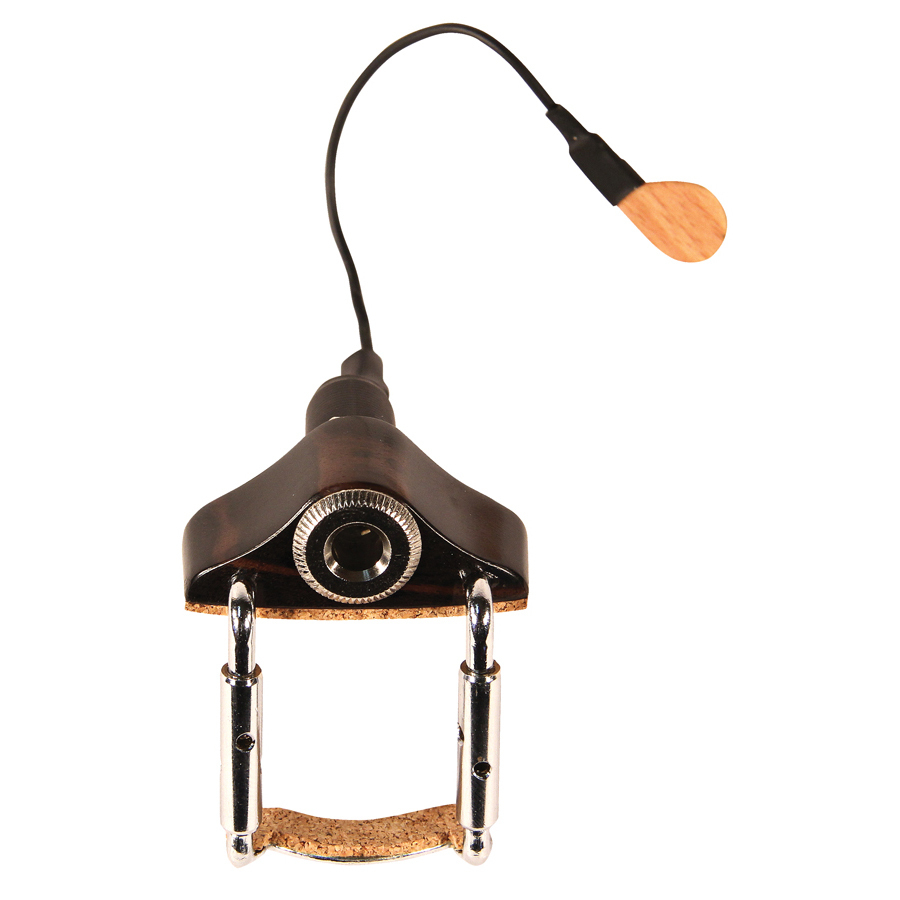

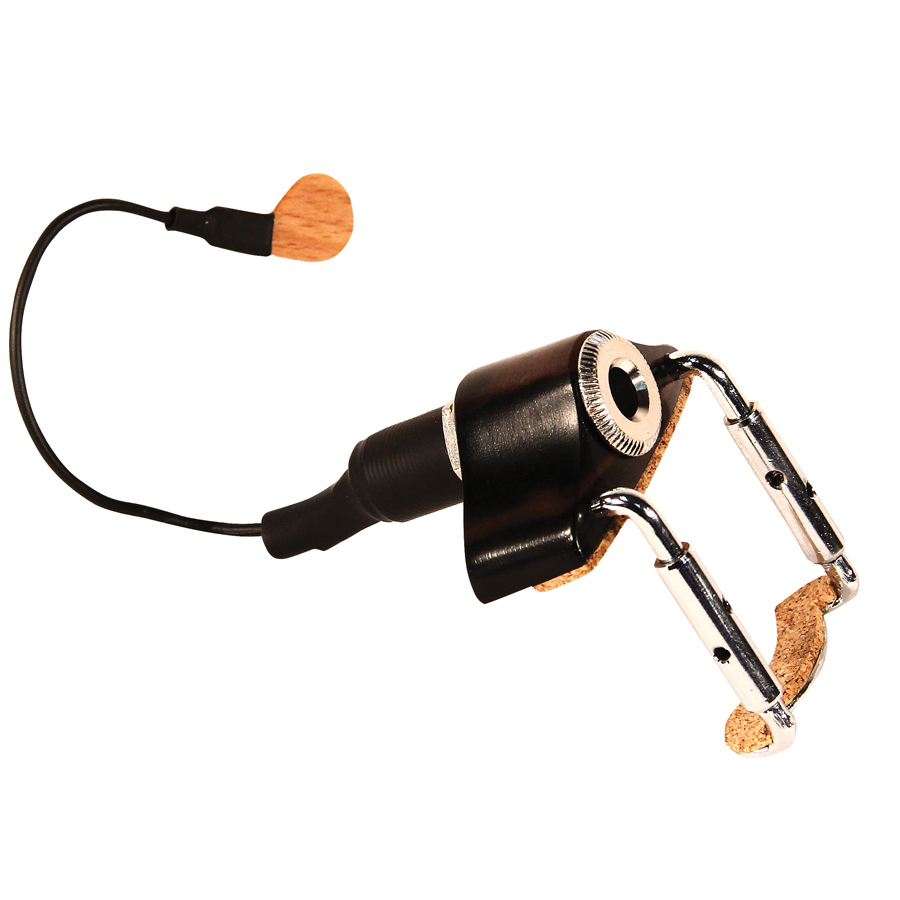

KNA VV-3 Violin Pickup

RRP $199.00
$169.00
SAVE $30.00
In Stock

or 4 payments of $42.25 with Info



Low-profile portable bridge-mounted piezo for violin or viola

VV-3 violin pickup offers clean and clear acoustic sound with easy installation without modification to the instrument.

The lightweight low-profile ebony jack housing makes the unit ideal for a performing musician.

Features:

Safe install

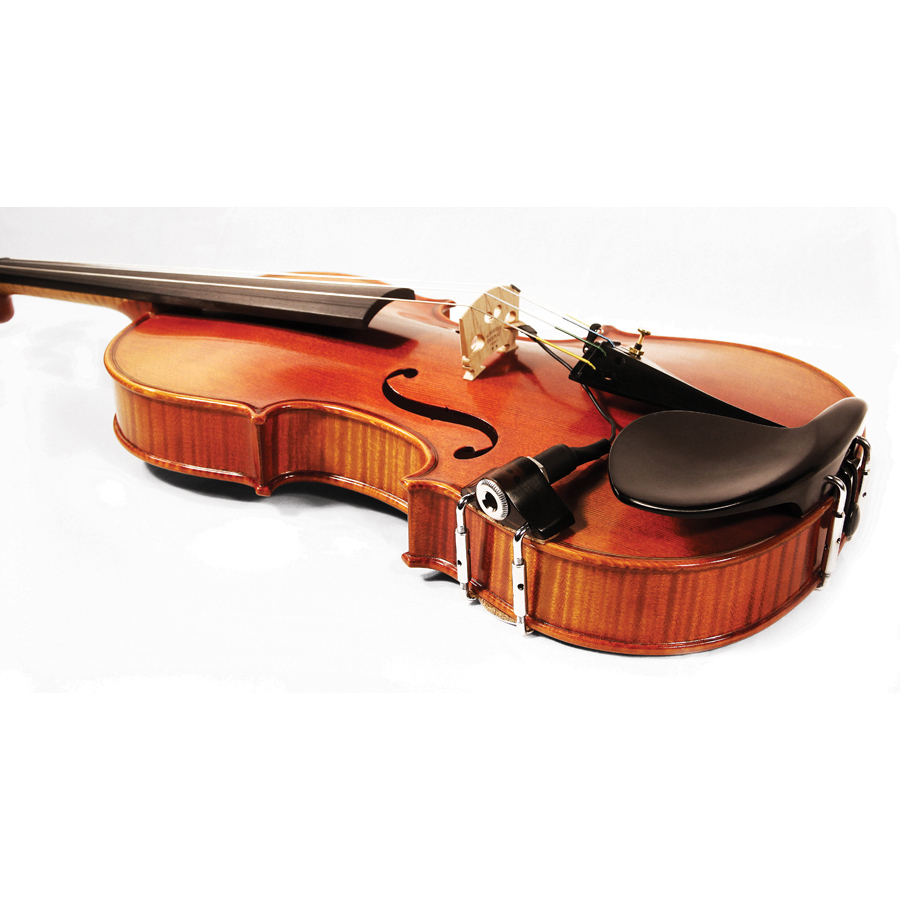

Just mount the pickup jack housing onto the lower bout, just below the waist on the 4th (G) string side of your instrument and adjust the height of the barrel clamps to tighten the pickup to the instrument.

Wooden housing and sensor

The jack housing is encased in elegant and stylish ebony and the piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.

Natural sound

VV-3 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

Great compatibility with many sizes of violin and viola

The pickup comes with additional barrels for attaching the jack housing to larger violin and viola bodies.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

specifications

Jack housing material

Solid Ebony

Overall weight

36gr / 1.27

Lead cable from jack housing to element

15cm / 5.9"

Diameter of piezo element 11.8mm / 0.46"

Thickness of the piezo element

1.8mm +/- 0.10mm

Maximum Impedance

1500 ‰ã_

Clamps adjustability (min & max)

33mm to 43mm

1.16" to 1.51"

Clamps adjustability (min & max)

40mm to 49mm

1.41" to 1.73"





(KNAVV3)

SKU KNAVV3
Brand KNA Pickups
Shipping Weight 0.0600kg
Shipping Width 0.045m
Shipping Height 0.089m
Shipping Length 0.050m
