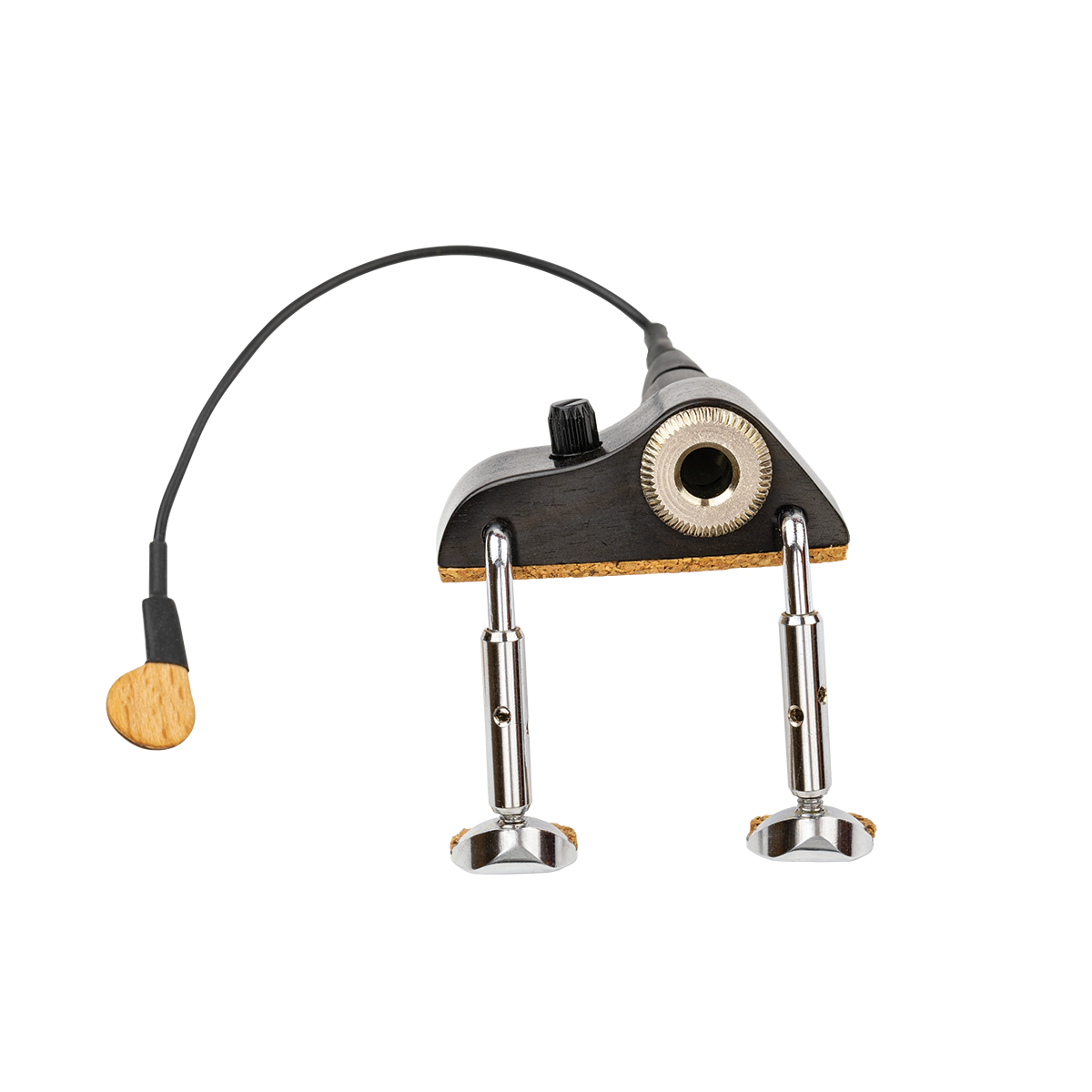

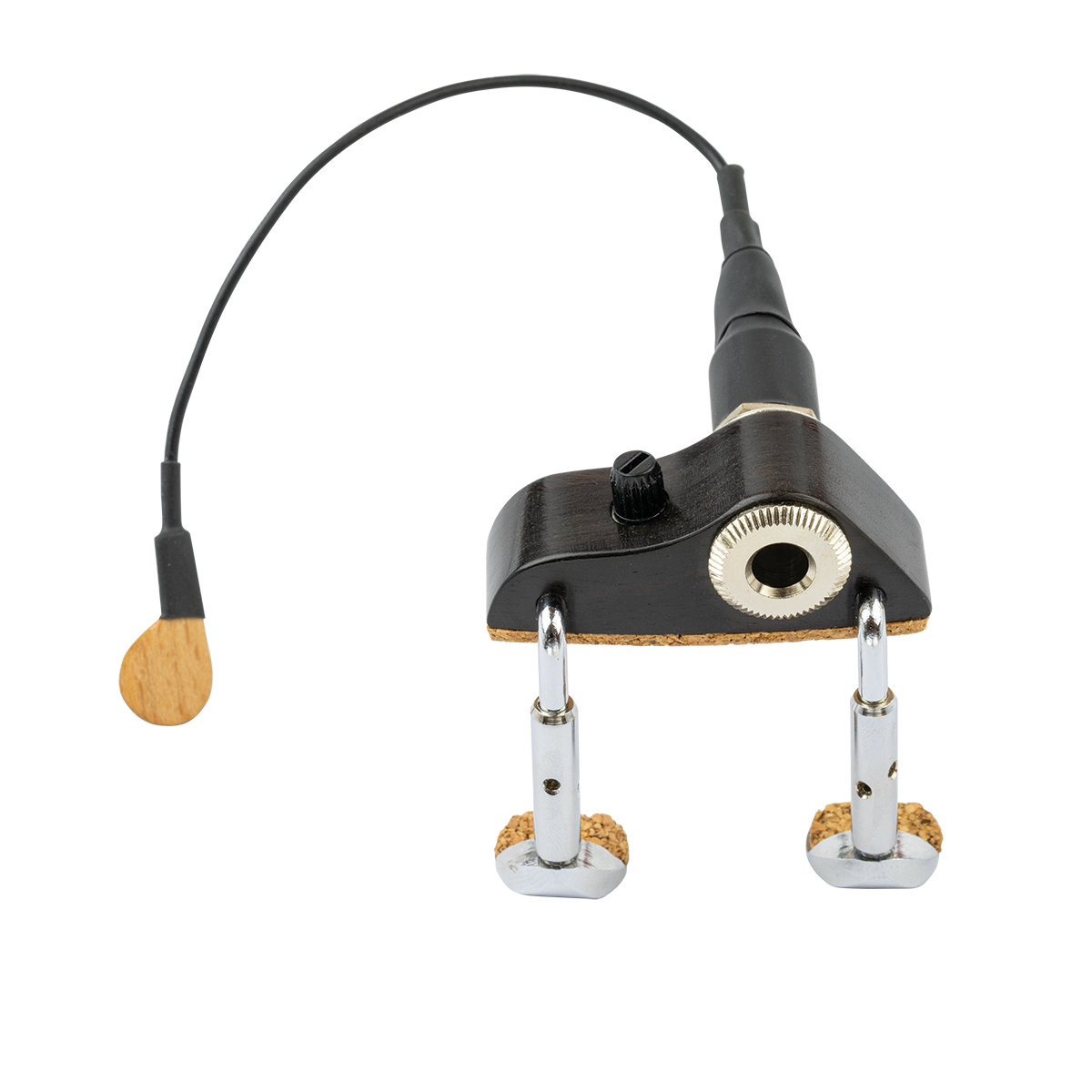

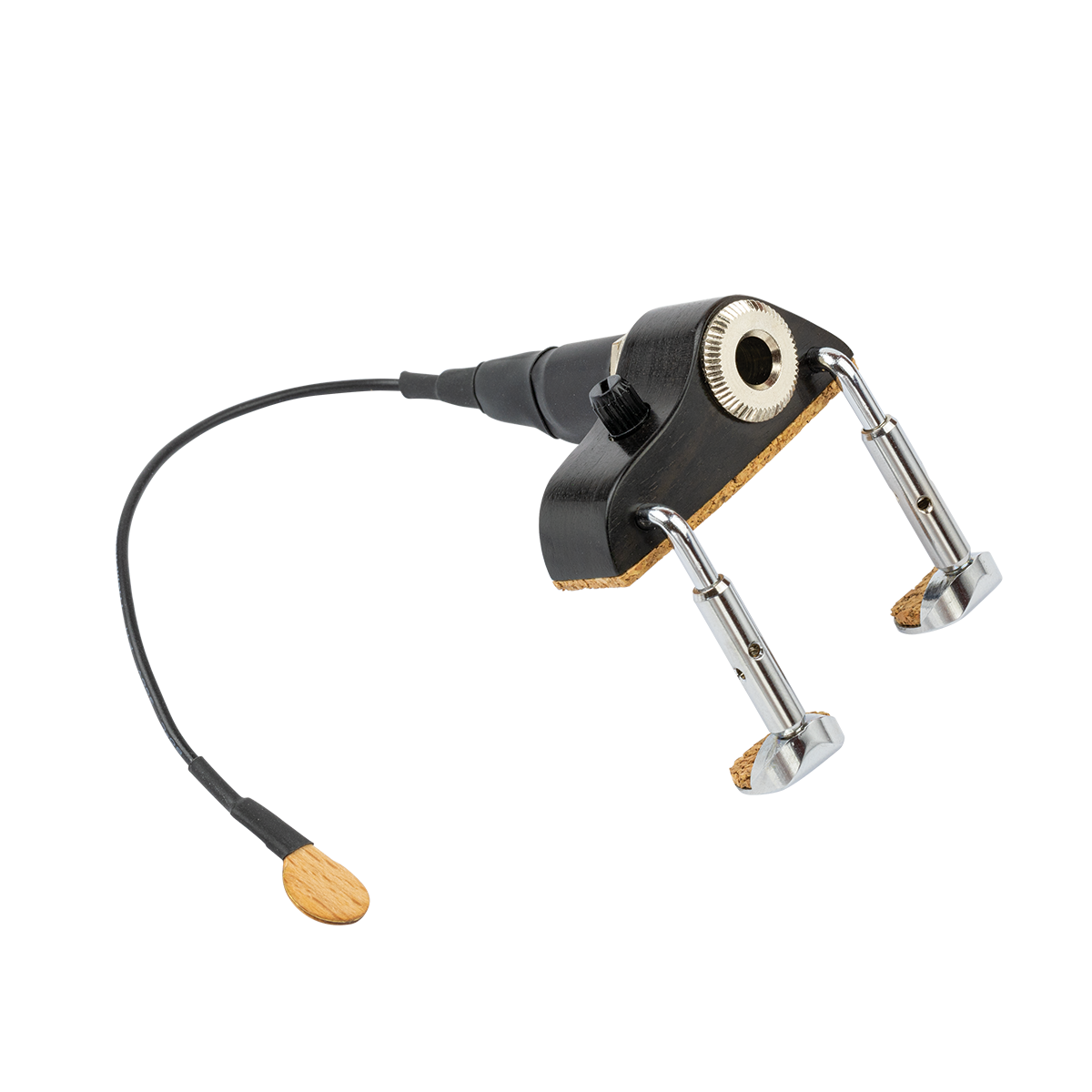

KNA VV-3V Ebony Violin Pickup with Volume Control

Low-profile portable bridge-mounted piezo with volume control for violin or viola

VV-3V is the perfect solution for violin and viola players who seek to capture the natural tone of their instrument.

An onboard volume control makes it easy for performers to control the pickup output while onstage.

Cork-lined, fully adjustable barrel clamps keep the unit safe and stable while attached to the instrument.

Features:

Safe install

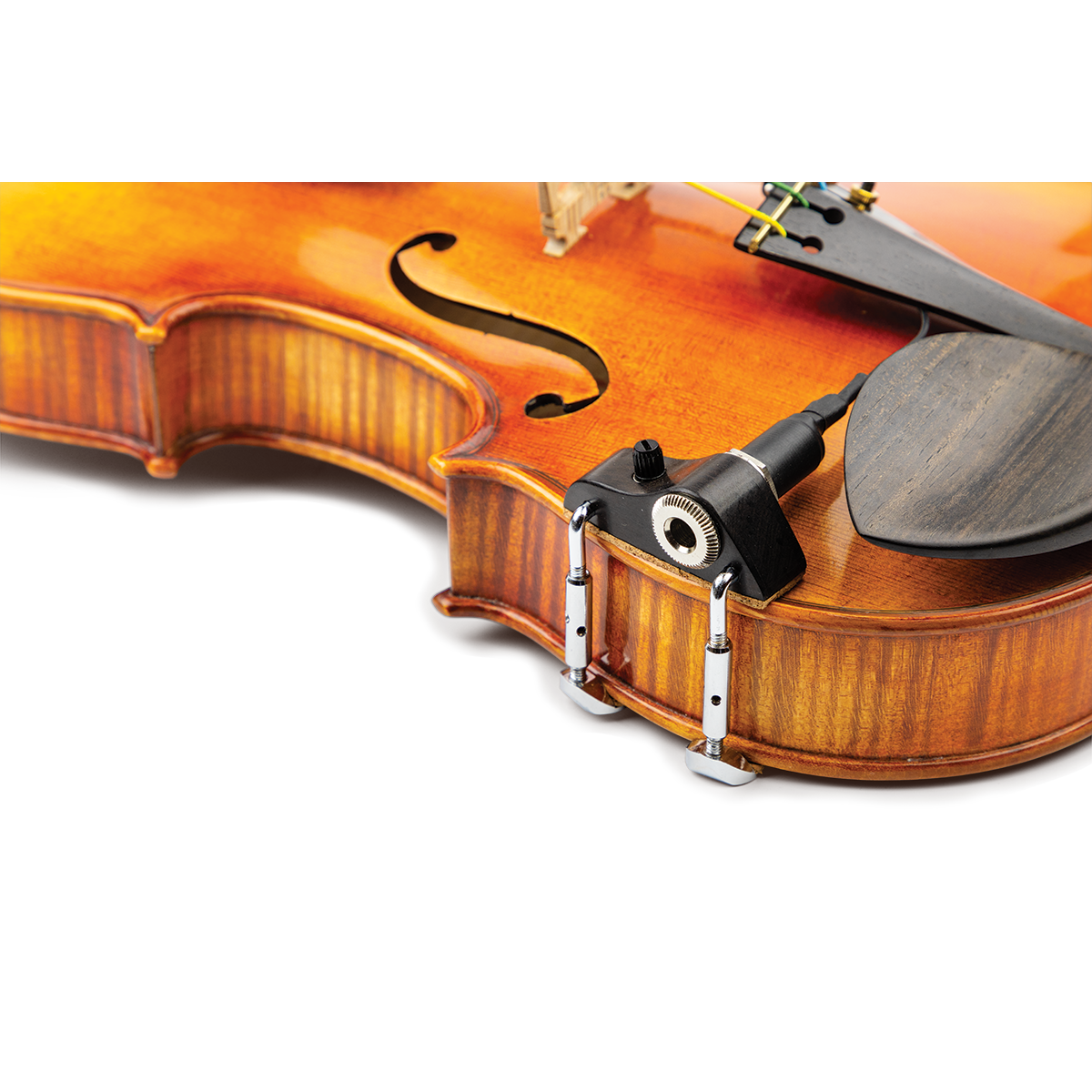

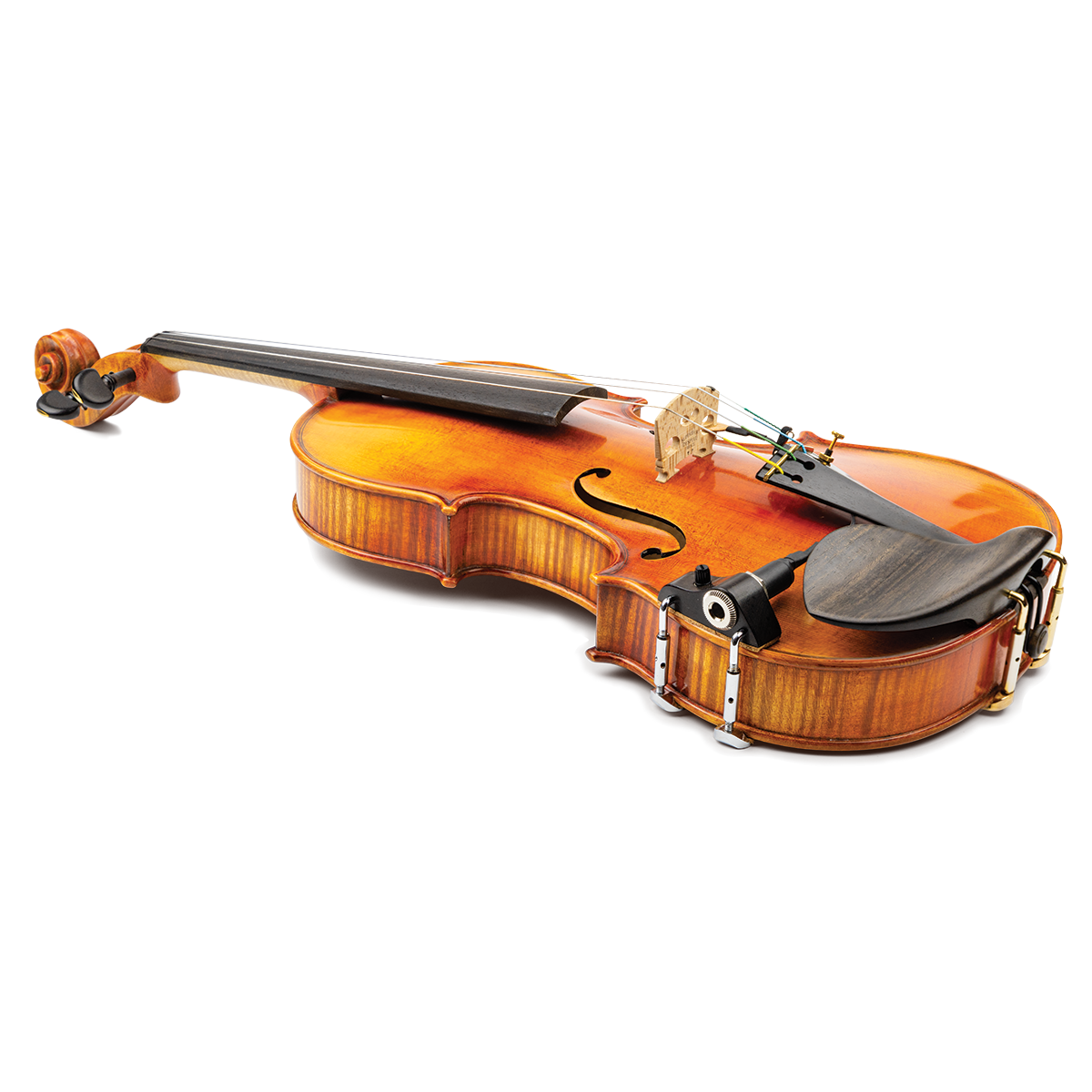

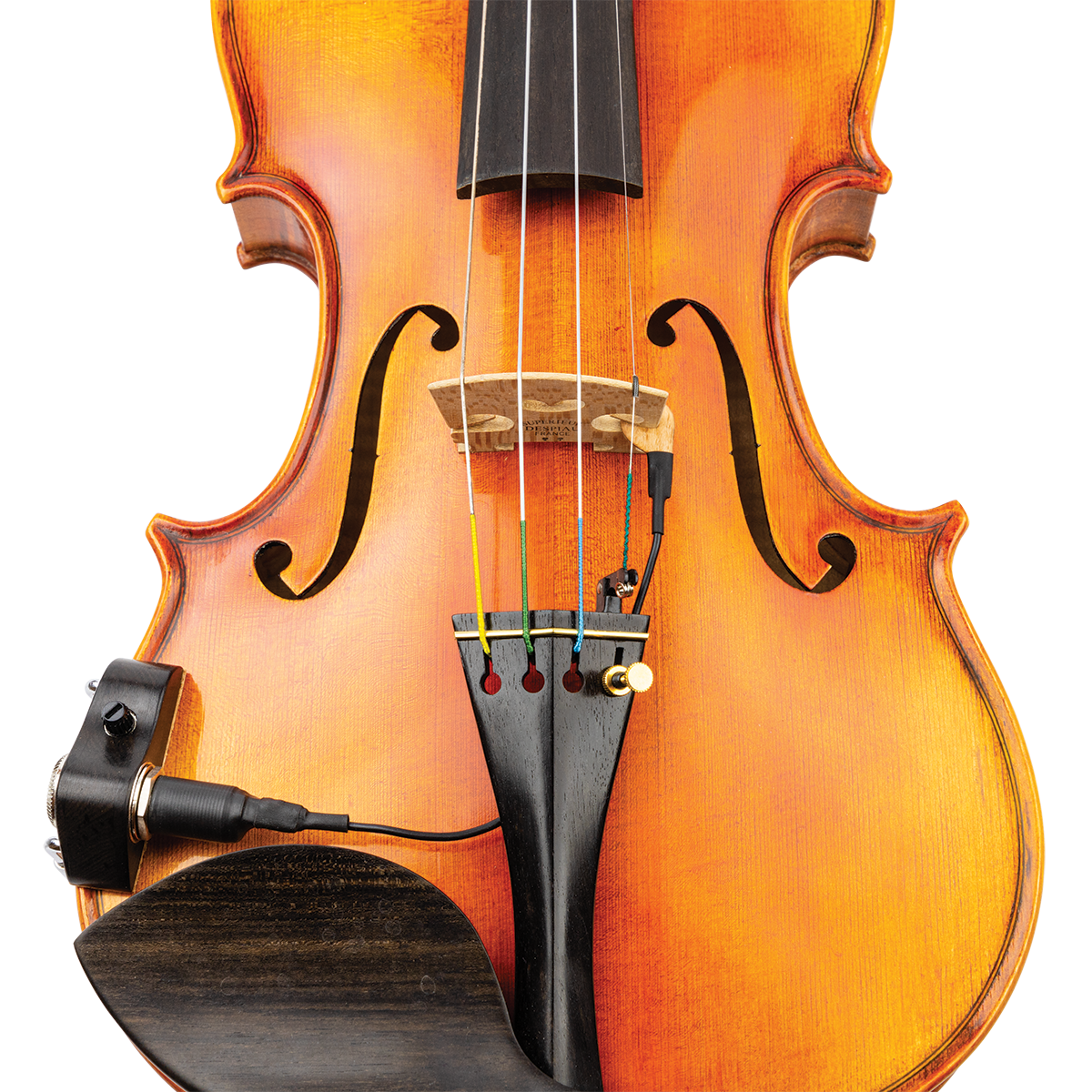

Just mount the pickup jack housing onto the lower bout, just below the waist on the 4th (G) string side of your instrument. Adjust the height of the barrel clamps to tighten the pickup to the instrument.

Onboard volume control

Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

Wood housing and sensor

The jack housing is encased in elegant and stylish ebony. The piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.

Natural sound

VV-3V has a passive design that reproduces the natural sound of the instrument with no need for a battery.

Great compatibility with many sizes of violin and viola

The pickup comes with additional barrels for attaching the jack housing to larger violin and viola bodies.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

specifications
Jack housing material	Solid Ebony
Overall weight	45gr / 1.6oz
Lead cable from jack housing to element	15cm / 5.9"
Diameter of piezo element	11.8mm / 0.46"
Thickness of the piezo element	1.8mm +/- 0.10mm
Maximum Impedance	1500 ‰ã_
Clamps adjustability (min & max)	33mm to 43mm 1.16" to 1.51"
Clamps adjustability (min & max)	40mm to 49mm 1.41" to 1.73"
