LR Baggs ANTHSL Anthem SL Acoustic Guitar Pickup System with Element & Microphone

Anthem™ Series

Studio Mic'd Sound Wherever You Perform

The Award-winning Anthem series, featuring our patent-pending TRU•MIC technology, seamlessly combines a proprietary condenser microphone With our acclaimed Element pickup to deliver the warmth and fidelity of a studio-mic’d guitar anywhere you perform.

TRU•MIC TECHNOLOGY

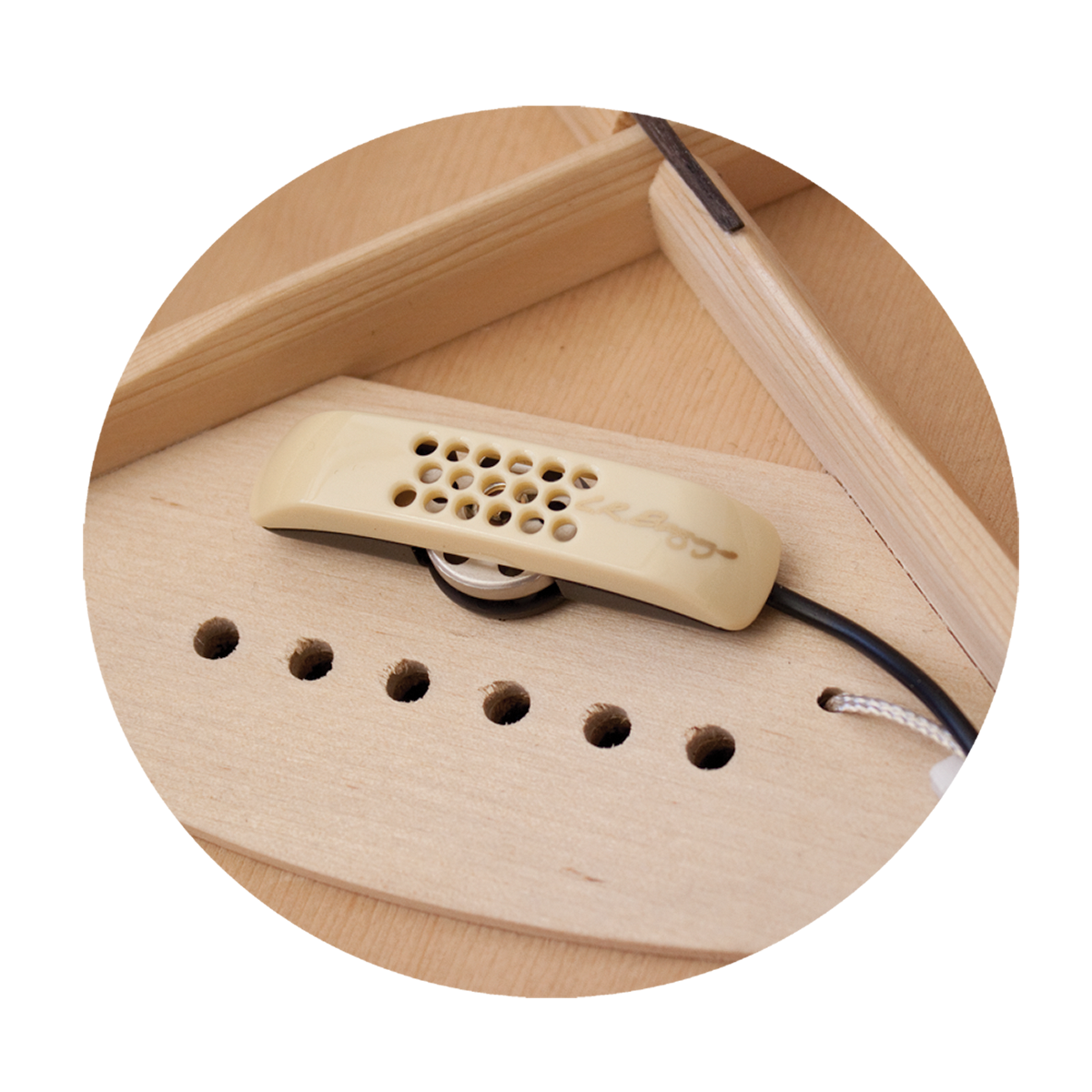

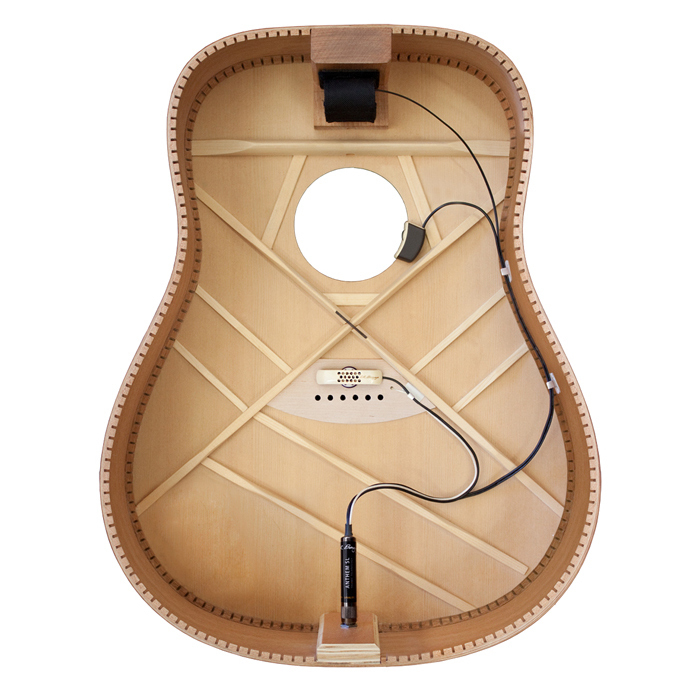

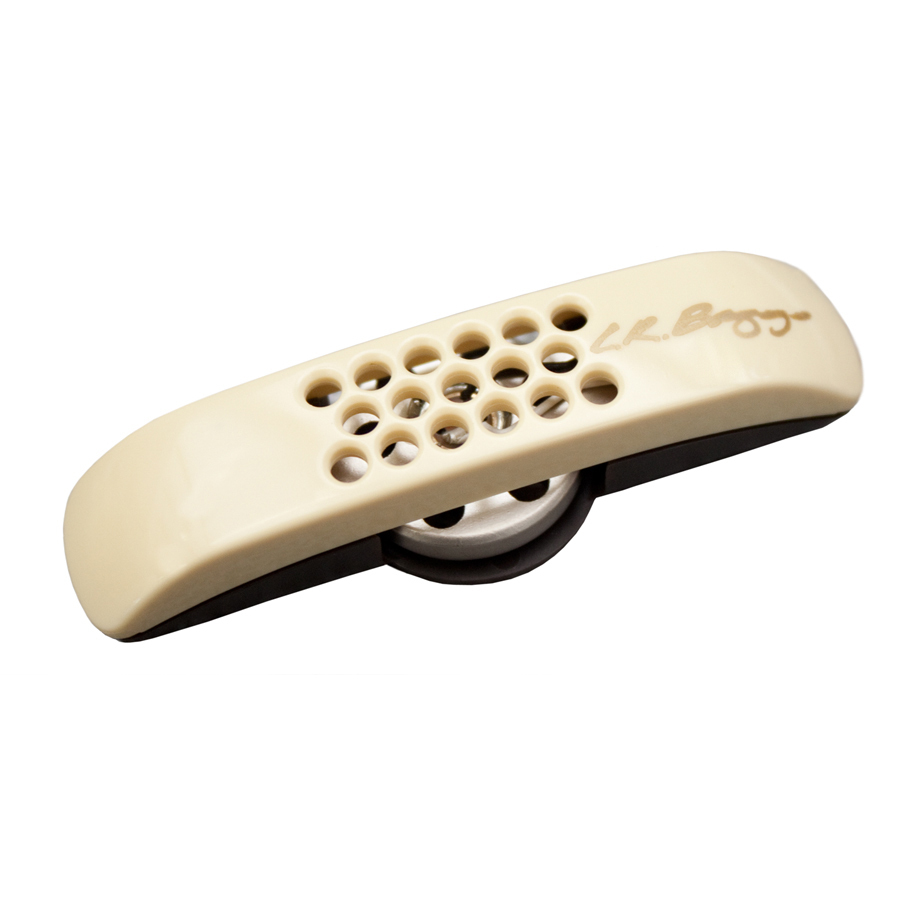

At the heart of the Anthem is a revolutionary microphone engineered to capture a dynamic studio-mic’d sound for any live performance. The TRU•MIC mounts to the underside of the bridge plate and hovers just 3 mm above its surface to take advantage of the PZM or “boundary” effect. This proprietary mounting system, combined With noise cancellation, frees the mic to perform as if it were outside of the guitar in a studio and maintain remarkable feedback suppression for the stage. The result is a balanced frequency response With excellent clarity for the purest sound you have ever heard amplified. We have paired the Element pickup With the TRU•MIC to provide solidity and punch for low frequencies.



ANTHEM SL™

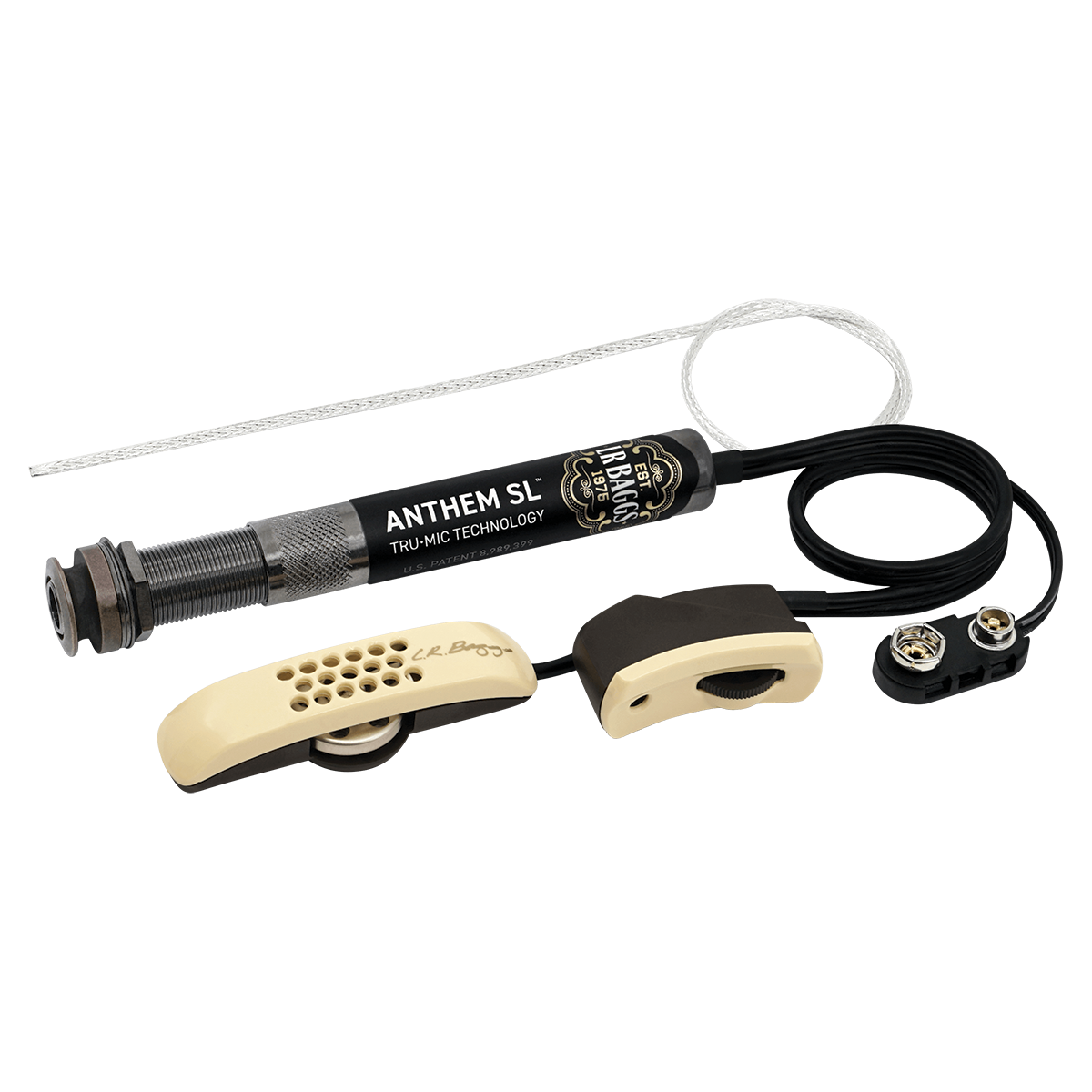

For those of you who prefer a minimalist approach to controls, the Anthem SL delivers the same groundbreaking studio mic’d fidelity as the Anthem in a streamlined format With a single volume control. The endpin preamp has all-discrete circuitry for the purest signal and the TRU•MIC is premixed With the Element for optimum performance.

FEATURES:

• Anthem TRU•MIC carries the majority of the guitars’ frequency range while the Element Pickup carries only the lowest frequencies
• The mic is highly feedback-resistant
• Noise cancelling microphone technology eliminates any annoying honky or boxy qualities from the inside of the guitar
• Mic installs easily on the bridgeplate With peel and stick adhesive
• Mic and pickup levels preset for optimum performance
• Soundhole remote includes volume and mic trim controls
• All discrete pre-contoured endpin preamp With preset crossover
• Element Pickup fits most common string spacings and saddle width
• Comes With battery bag for secure and unobtrusive battery retention
• Patent-pending

Options:
ANTHEM™
ANTHEM SL™
STAGEPRO ANTHEM™
ANTHEM SL CLASSICAL™

Anthem™ Series Support

Please Note: LR Baggs products must be installed by an authorized LR Baggs dealer to qualify for warranty coverage. Technical assistance will not be provided for home or hobbyist installations.

ANTHEM SL™

 Anthem SL Installation Manual

 Anthem SL User Guide

---
